| Datto winter project. | ||
 |
||
The suspension |
||
The car has been fitted with a Megan Racing coil over suspension in the front and rear. The front had to be changed to fit the S13 coilovers. For this to happen an S12 engine frame was used and shortened 50 mm to fit the 180b's chassis. Also the lower suspension arms of an S12 are used which are connected to S13 Spindles/ hubs. Battleversion tension rods for Toyota AE86 will be used. |
||
 |
||

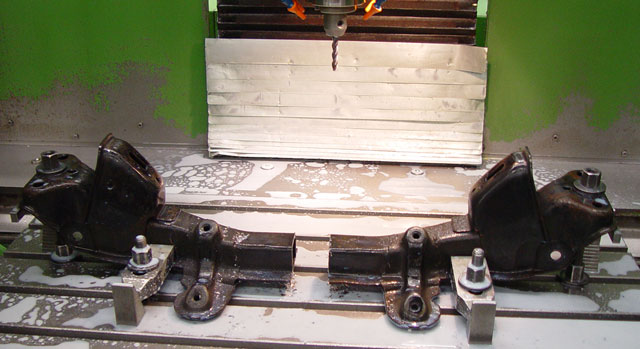

CNC machined bolt pattern and the frame cut in half. |
||
 |
||
The two halfs welded together. |
||
 |
||

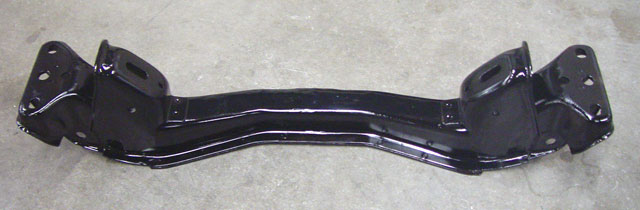

After removing the steering rack mounts, sandblasting and painting |
||
 |
||

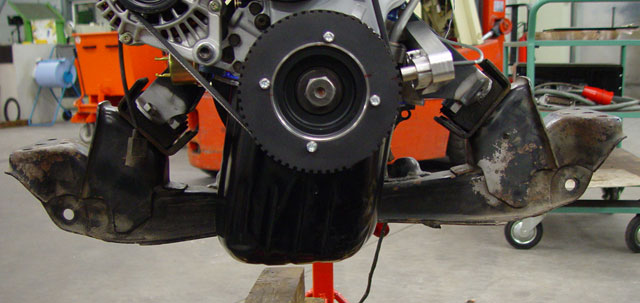

Test fit the engine with the shortened S12 frame. |
||
 |
||

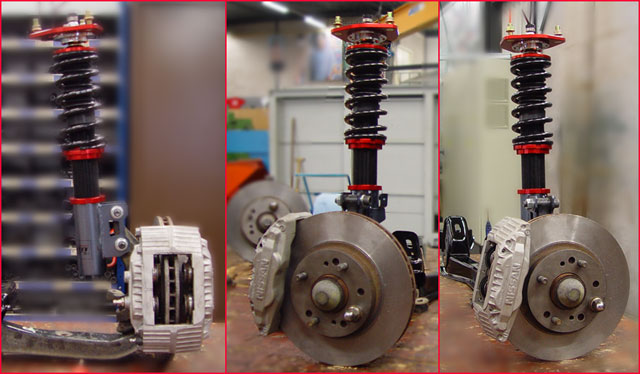

Test fit with the S12 frame, S12 arms, S13 hub, Megan racing strut and Z32 caliper. |
||
